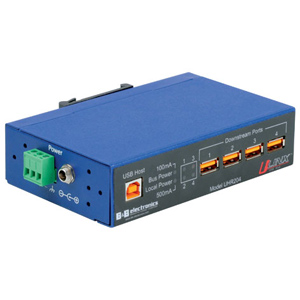

B&B U-Linx USB Hub 4 port Industriell

Information

USB 1.1 and 2.0 compatible

Upstream port: USB Type B Female – High retention (withdrawal >15 N)

Downstream ports: 4 USB Type A Female – High retention (withdrawal > 15 N)

Speed: 480Mbps, 12Mbps, 1.5Mbps

ESD: 8 kV contact, 15 kV air

USB Bus Power: 5 VDC from USB bus

Input Power Voltage: 10-30 VDC, external power via terminal block or locking barrel plug input

Downstream Power: Bus Power = up to 100mA (per port), External Power = up to 500mA (per port)

Dimensions: 5.5 x 3.5 x 1.4 in (139 x 87 x 35 mm) without panel brackets

Operating Temperature: -40 to 80°C (-40 to 176°F)

One DIN and two panel brackets included

---

Tillverkarens art.nr	Communicas art.nr	Produkt
UHR204	5353421	B&B U-Linx USB Hub 4 port Industriell

---
